CF AVM 360° Panoramic Surround View Solution

truck tablet

The Agritechnica 2023 event in Hanover, Germany, recently concluded with great success. CFDEVICE left a notable impression at the exhibition by showcasing a range of products and solutions, particularly highlighting the CF AVM 360° Surround View Imaging system, in response to the market’s growing demand for advanced visual sensing applications.

Tips 1: What is 360° Surround View Imaging?

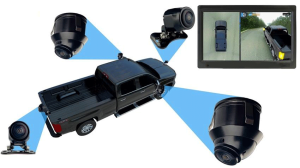

CF AVM 360° Surround View Imaging is an essential safety feature designed for specialized vehicles. Unlike standard rearview cameras, this innovative system incorporates multiple 190° ultra-wide-angle AI smart cameras equipped with advanced algorithms positioned on the vehicle’s front and sides. This setup enables drivers to obtain a comprehensive 360-degree panoramic view around the vehicle through the onboard display. By leveraging virtual scene projection reconstruction technology, it delivers various views including top view, front and rear angle view, forward/reverse view, and other virtual perspective images. After undergoing image distortion correction and perspective transformation, it seamlessly generates a complete bird’s-eye panoramic view encompassing the vehicle’s surroundings.

360°-Surround-View-Imaging-truck

360° Surround View Imaging is an essential capability of lightweight AI in specific industries.

In the realm of mining machinery, operators can monitor the environment surrounding the mining truck in real-time, thereby mitigating risks such as collisions, sinkholes, road hazards, and operational hazards under extreme conditions.

This application is equally critical in agriculture. With the increasing occurrence of incidents like “Elderly person in Zhoukou, Henan, dies after being caught in a rotary tiller while picking peanuts,” it’s evident that during the harvest season, the presence of numerous individuals and vehicles can lead to blind spots, accidents, uneven harvesting, and wastage. The 360° Surround View Imaging effectively addresses these challenges.

Moreover, in fields such as mechanical control, autonomous driving, drones, and smart ports, the 360° Surround View Imaging system is poised to play a significant role.

Tips 2: CF AVM 360° Surround View Imaging and Solutions

To address vehicle blind spots, companies have proposed various solutions including rearview mirrors, voice alerts during driving, reversing radar systems, visible radar systems, reversing cameras, split-screen surround view, and stitched 360° surround view displays.

Beyond offering basic 360° surround view imaging functionality, CF AVM also incorporates a highly scalable advanced driver-assistance system (ADAS). It can be seamlessly integrated with various applications to suit specific requirements. In critical situations such as lane departure, imminent collision, or blind-spot avoidance, it automatically identifies and alerts drivers in a timely manner, significantly reducing the risk of accidents.

truck tablet

Throughout its development, CFDEVICE has remained committed to addressing market demands, aiming to minimize accidents such as scrapes and collisions in operations involving large vehicles with wide blind spots, such as mining trucks and agricultural machinery.

CF AVM utilizes a cutting-edge 3D 360° panoramic surround view system for vehicle assistance, coupled with CFDEVICE’s rugged in-vehicle intelligent tablet. Four high-definition cameras positioned around the vehicle capture images that undergo distortion correction, image stitching, and color balancing by the main system, resulting in the creation of a 3D bird’s-eye view displayed on the vehicle’s tablet. In addition to showcasing the vehicle’s bird’s-eye view, it provides real-time footage from the cameras, with the view angle adjusting according to the driving trajectory and automatically adjusting the split-screen content based on driving behavior. CFDEVICE’s rugged in-vehicle intelligent tablet, integrated with an SDK, eliminates the need for additional control boxes, enabling multi-purpose use of a single display and cost savings.

The system can capture real-time forward driving scenes and driver behavior, indicating whether the driver is adhering to the specified route. In scenarios where the fleet operates over extended shifts in complex, crowded construction sites, the system can be expanded with a warning monitor system. Upon detecting someone approaching the vehicle, it sounds an alarm to alert the driver to nearby pedestrians, thereby enhancing operational safety, promptly identifying safety hazards, and not only addressing challenges encountered during the operation of large machinery but also enhancing work efficiency.

Vehicles equipped with CF AVM and CFDEVICE’s rugged in-vehicle intelligent tablet can seamlessly connect to the entire vehicle’s automation system. This capability proves invaluable in industries such as agriculture and mining machinery, enhancing work efficiency in unmanned or semi-automated scenarios. Equipped with CFDEVICE’s MDM device platform, it provides a comprehensive monitoring solution encompassing both software and hardware.

truck tablet

In this era of rapid transformation and automation across various industries, CFDEVICE’s comprehensive human-machine interaction solutions, including the CF AVM 360° Surround View Imaging system, assist clients in overcoming complex challenges, delivering economic benefits, and ensuring safety for end-users.
