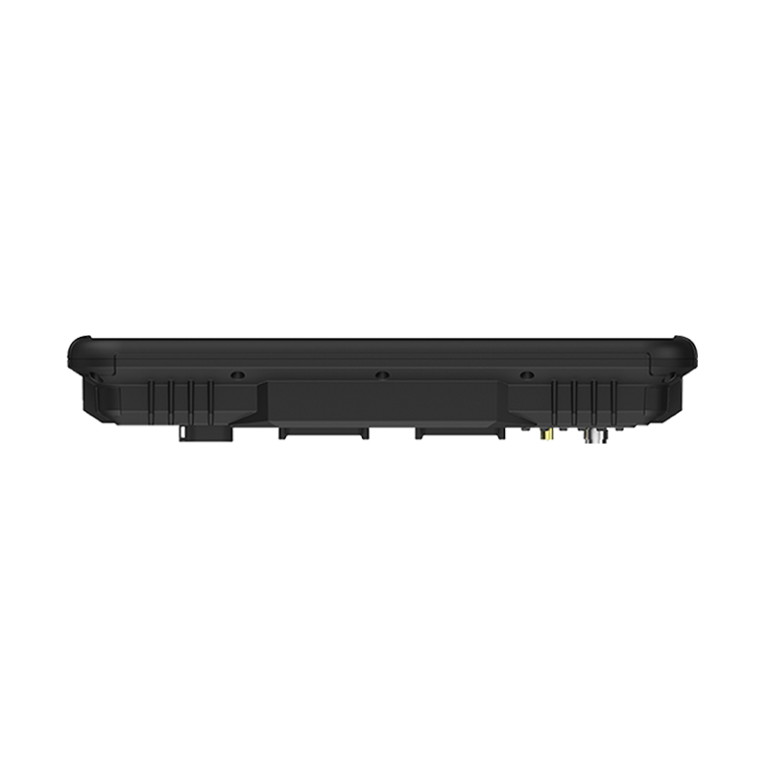

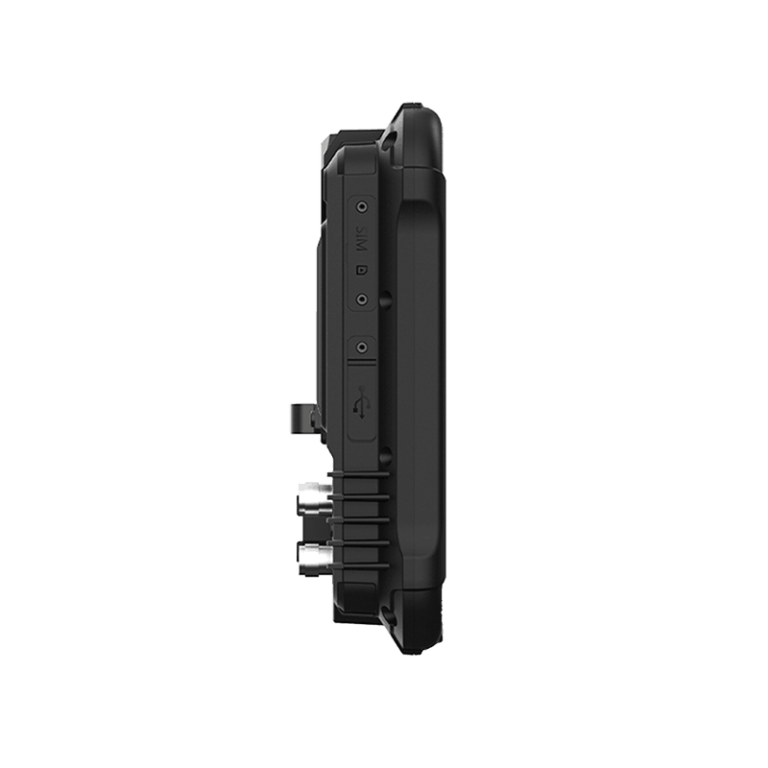

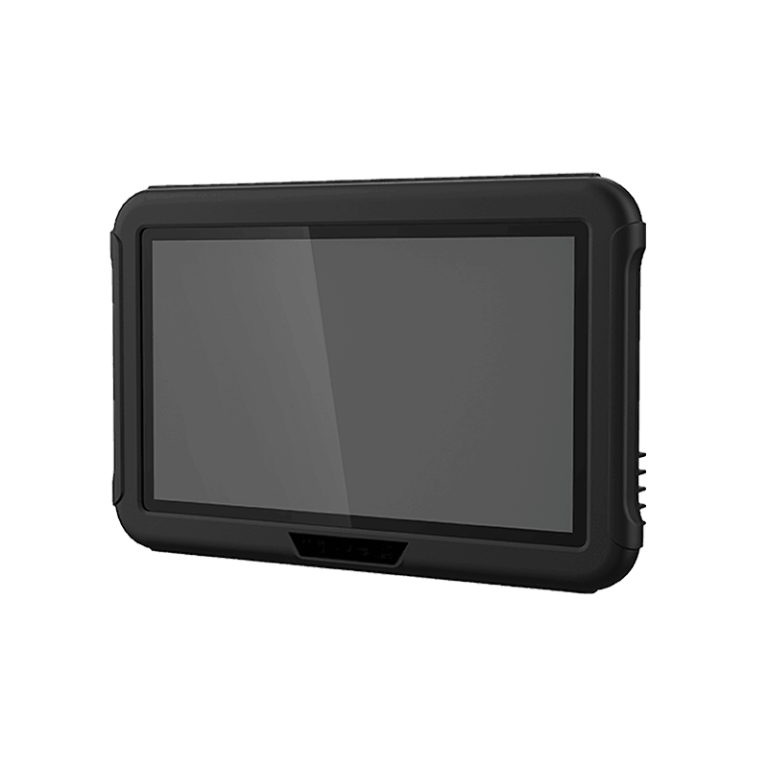

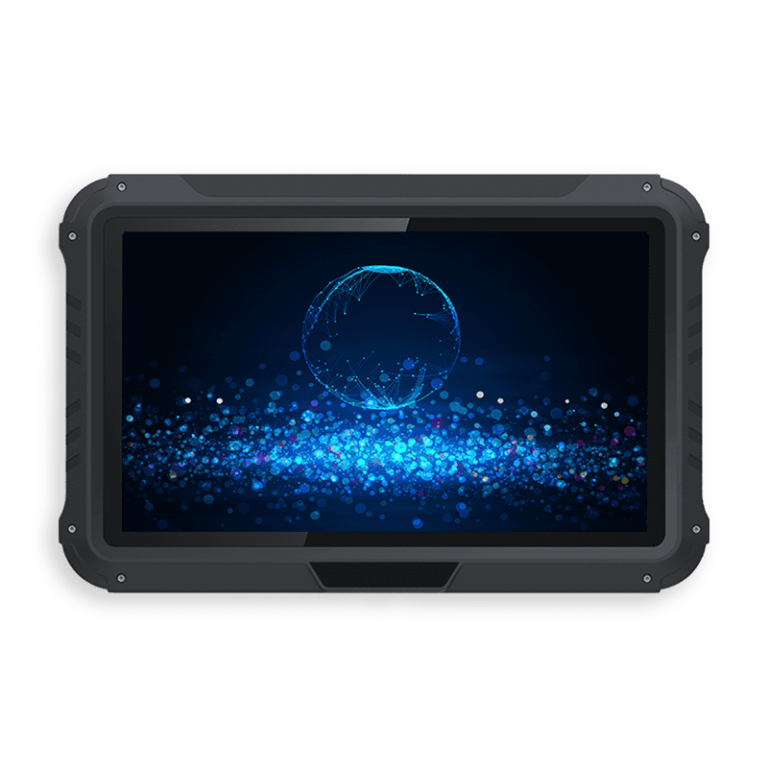

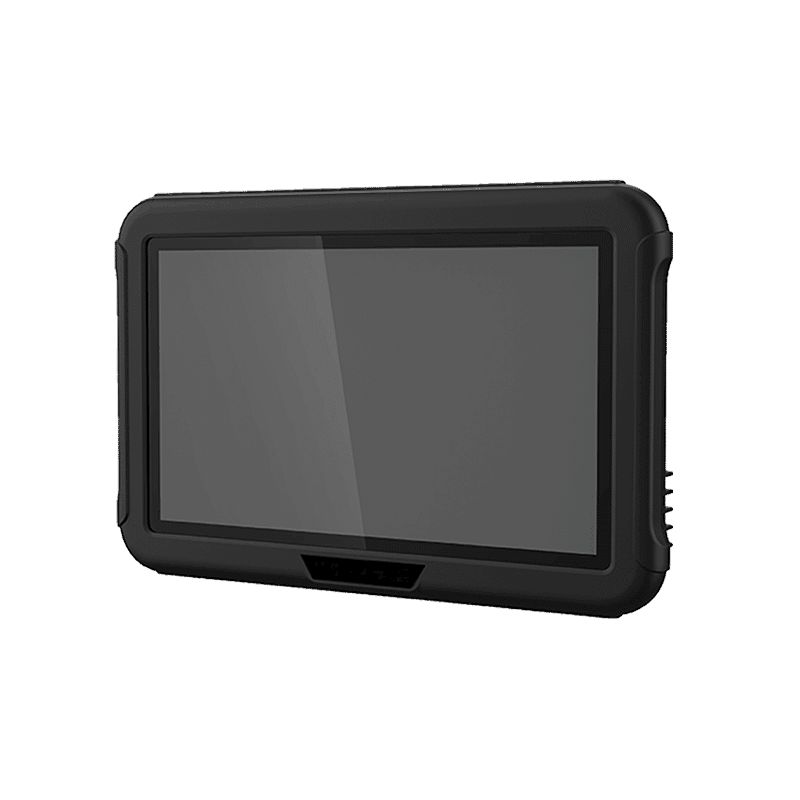

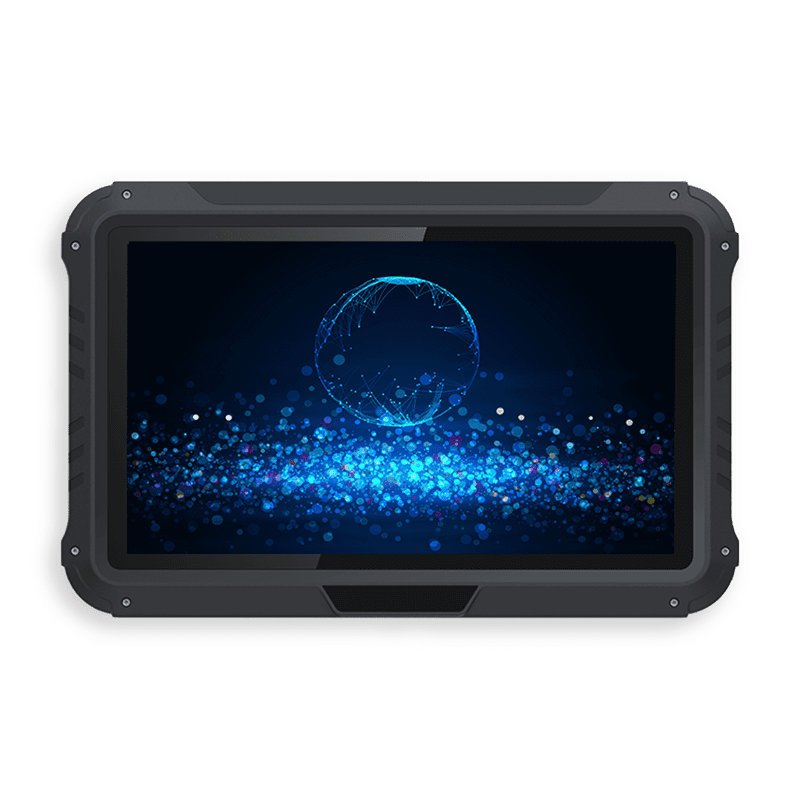

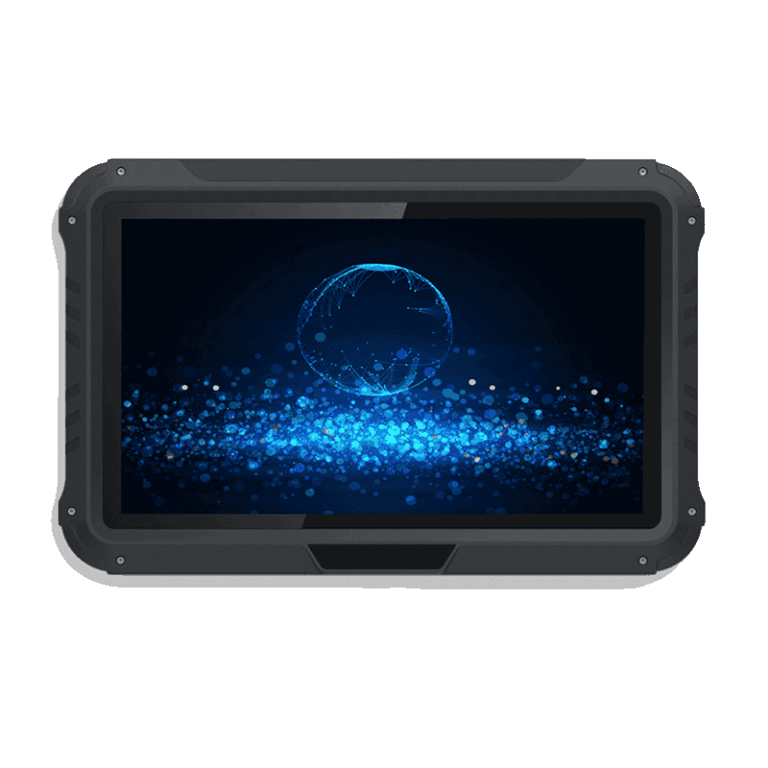

VCM V10 PRO
- 10.1″ High Brightness Display
- Vehicle-grade CPU
- IP65 Sealing Level Design
- Support 250K/500K CANbus (J1939, CANopen, ISO15765)
- 9-36V Wide Voltage Input
- Support Radio Communication under Multiple Protocols
Features
Octa-core Powerful CPU, GPU Supports OpenGLES 3.1
Supports 250K/500K CANbus (J1939, CANopen, ISO15765)
9-36V Wide Voltage Input, Supports Ignition Detection
Specifications
| System | Octa-core, 1.8GHz 2G RAM 16G ROM, Supports 128G TF Extension Android 9.0 |
Display | 10.1″, 1024*600p, 750cd/m2 5-Points Capacitive Multi-touch Screen |
| Communication | c2.4GHz/5.8GHz WiFi, IEEE 802.11 b/g/n, Supports WiFi Shared Hotspot BT2.1+EDR/3.0/4.1LE/4.2BLE 4G/LTE (Dual SIM Optional) GNSS (GPS/BDS/GLONASS), Optional Centi-meter Level GNSS OEM Board, Optional Interial Navigation Module Built-in MIC (Optional) Built-in Speaker |
I/O Interface |
RS-232*2 RS-485*1 CAN*1 or 2 (Supports J1939, CANopen, ISO15765) DI*2, DO*2 USB 2.0*1 720p*4/1080p*2 AHD Camera 12V DC OUT*2 Ethernet*1 |
| Power Management |
9-36V DC Input Ignition Control |
Mechanical Spec |
Dimension(W*H*D): 281*181*42mm Weight: 1.5KG |
| Rugged Feature |
IP65 Vibration & Shock: MIL-STD-810 Road Vehicle Standard: ISO16750 Humidity 95%, Non-condensing Operation Temperature: -30°C ～+70°C Storage Temperature: -40°C ～+85°C |
Button | Power Key*1, Function Key*2 |

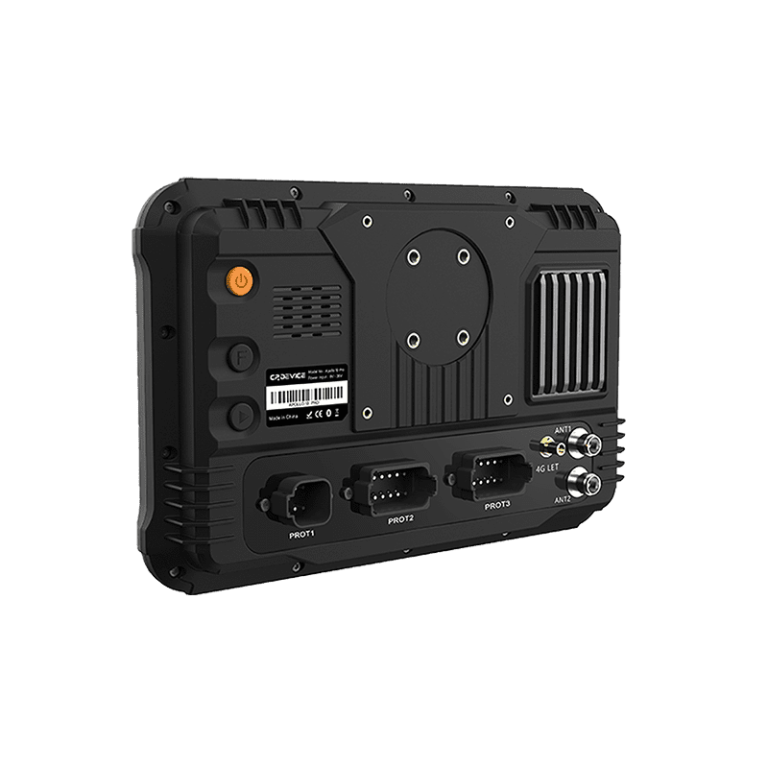

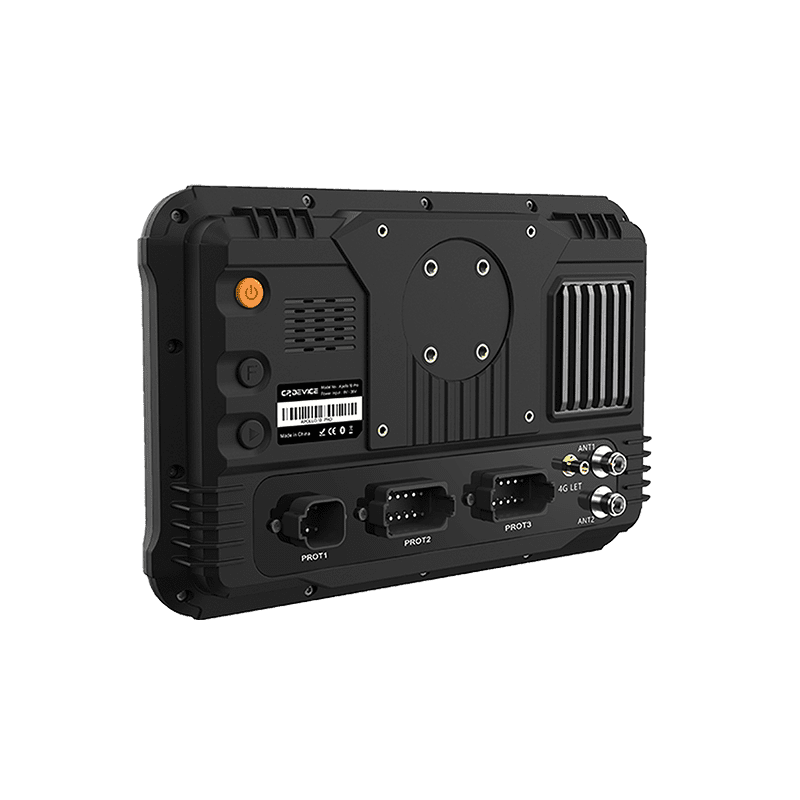

| Connector Type |
Standard Industry Waterproof Connector (4 Types of Pin Denition) SMA Female Connector*2 (GNSS&4G) TNC Female Connector*2 (GNSS) |
APPLICATIONS | Agriculture Construction HMI |
