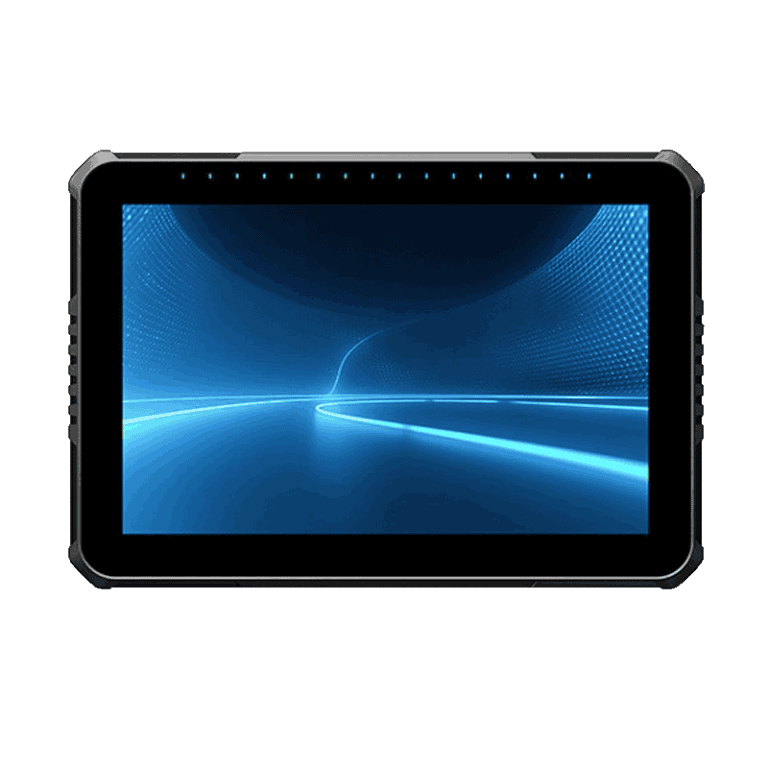

VCM V12-2
- Unrivaled Powerful Processor
- Industry-Leading Anti-Glare Full Display
- CF-Comm High-Speed Bus Architecture
- Highly-Sensitive Ultra-Link Wireless Communication
- All-New CoolSink Heat Dissipation
- 5-36V Wide Voltage Input
- Enhanced Protection with IP66 Design
Features
Equipped with a 1T powerful processor
Supports 250K/500K CAN and SocketCAN bus (J1939, CANopen, ISO15765)
Supports both Android and Linux OS
Specifications
| System | Quad-Core Cortex-A55 CPU (2.0GHz) ARM G52 2EE GPU OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Support High-Performance 2D Acceleration 1T Computing Power (0.8T NPU Support) Flexible OS & Storage Options: Android 11.0 Support Linux Kernel 5.10, 2GB RAM LPDDR4 (Up to 8GB) 16GB ROM EMMC (Up to 128GB) |
Display | 12” 5-Point Capacitive Touch Screen
Above 750 Nits Resolution: 1280*800P Anti-Glare Display |
| Communication and Sensor |
MIC *1 Built-in Speaker *1 External Speakers USB3.0 Interface *1 Gigabit Ethernet *1 G-Sensor *1 LTE 4G/5G Communication Module WIFI 802.11b/g/n, 2.4G Bluetooth 4.2 MXT906B & UM980 & P20E |
I/O Interface |
CAN *3（CAN *2, CAN FD *1） Up to RS232 *3 RS485 *1 ADC_IN Detection *2, Max. INPUT 12V DC_OUTPUT 12V *2 IO_INPUT *2 Up to AHD Camera *4 |
| Rugged Feature |
IP67 Protection Level MIL-STD-810 Vibration Compliance ISO16750 Road Vehicle Standard Operating Temp: -30°C to +70°C, Operating Humidity: 0%-90% RH Storage Temp: -40°C to +85°C, Operating Humidity: 30%-95% RH Salt Spray Test: 48-Hour Endurance for Entire Device |
Connector | 26PIN Connector *1 M12 X-Code Aviation Plug *1 SMA Female Connector *1 TNC Female Connector *1 |
| button | FUNCTION BUTTON x2 ON/OFF Button |
Light Bar | LED Light Bar，LED Lights *16 (Optional) |
| Mechanical Spec |
Dimensions (WxHxD): 317.8*219.6*34.5mm Weight: 1.75kg |
Installation | Easy Installation with RAM or Similar Mounts for Vehicles, Farm Equipment & Machinery |
