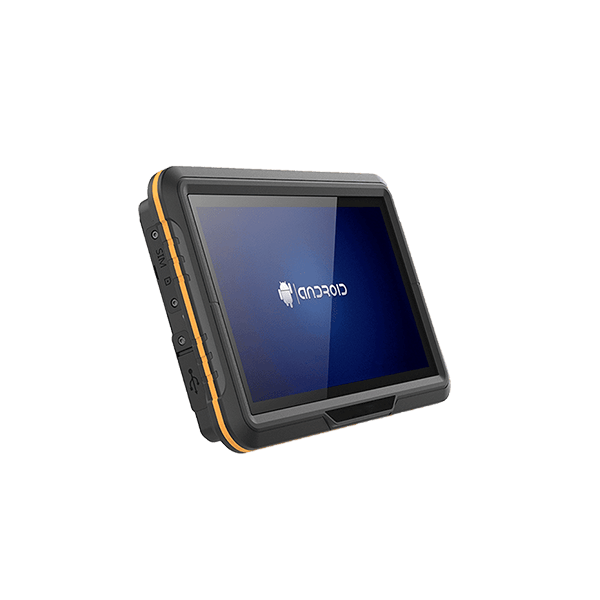

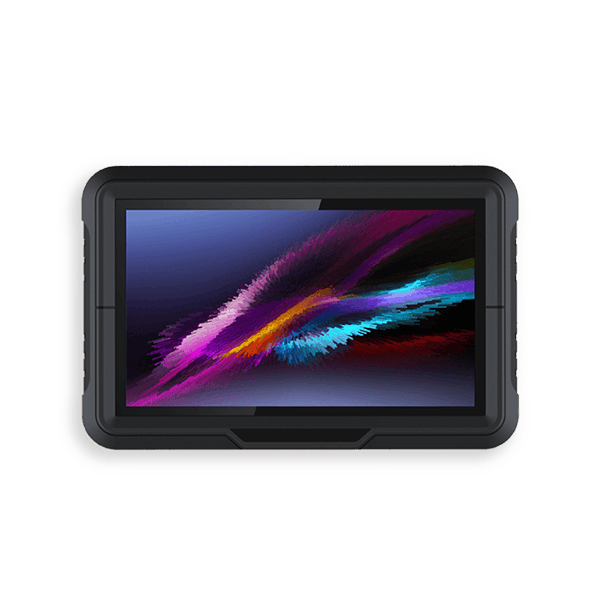

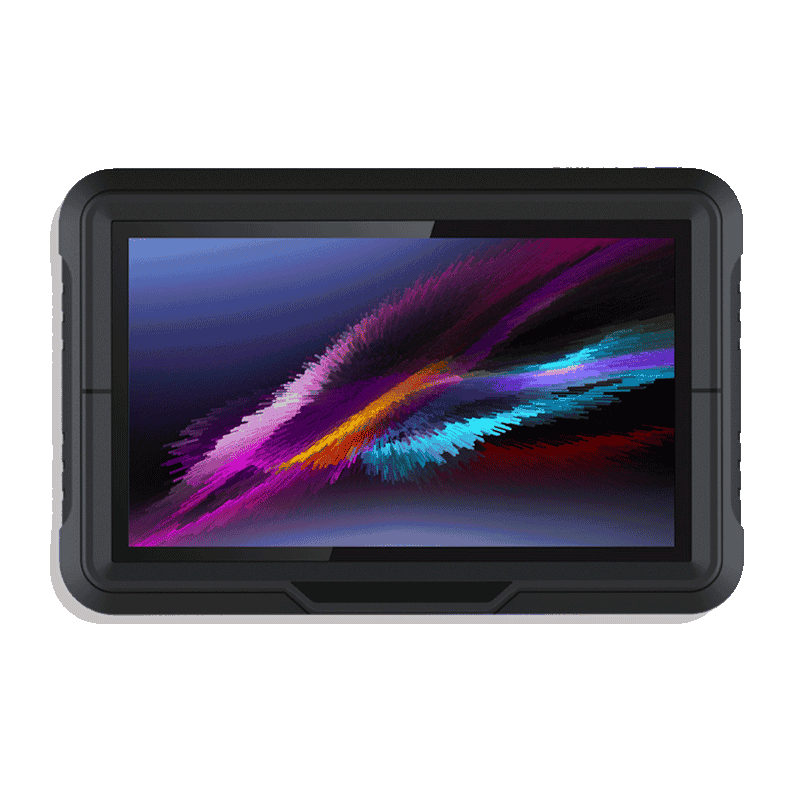

VCM S7
- 7″ High Brightness Display
- Vehicle-grade CPU
- IP65 Sealing Level Design
- Supports 250K/500K CAN Bus (J1939, CANopen, ISO15765)
- 9-36V Wide Voltage Input, Supports Ignition Detection
Features
Enhanced reliability to withstand challenging conditions including wind, sand, rain, water,
vibration, impact, extreme temperatures and humidity, and intense sunlight exposure
Supports 250K/500K CAN bus (J1939, CANopen, ISO15765).
Supports ISOBUS VT, controlling all VT-equipped ag implements with one device.
Specifications
| System | Quad-core, 1.2GHz 2G RAM 16G ROM Android 6.0.1/Linux 3.10 |
Display | 7″, 1024*600p, 750cd/m² 5-Point Capacitive Multi-touch Screen |
| Communication | 2.4GHz WiFi, IEEE 802.11 b/g/n BT 4.0, BLE 4G/LTE Optional Meter-level GNSS, Optional Centi-meter Level GNSS OEM Board Built-in MIC (Optional) Built-in Speaker Support ISOBUS VT |

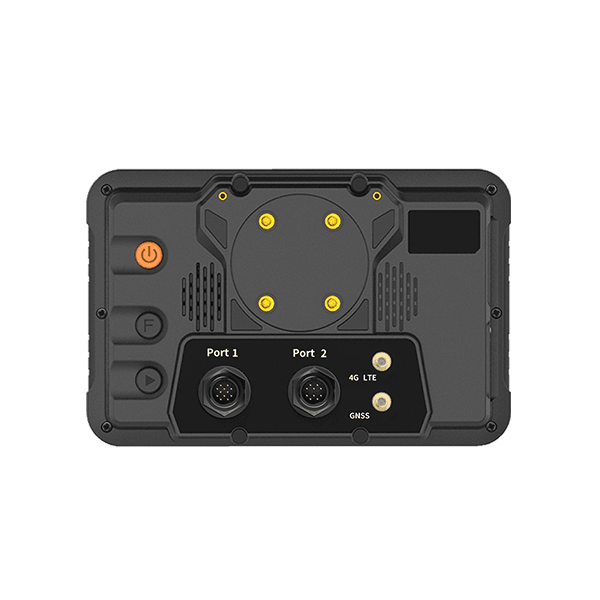

I/O Interface |
RS-232*2 RS-485*1 CAN*2 (Supports J1939, CANopen, ISO15765) USB 2.0*1 CVBS Camera*2 12V DC OUT*2 Ethernet*1 (Optional) |
| Rugged Feature |
Protection: IP65 Rated Vibration & Shock: MIL-STD-810 Road Vehicle Standard: ISO16750 Humidity 95%, Non-condensing Operation Temperature: -30°C ～+70°C Storage Temperature: -40°C ～+85°C |
Power management | 9-36V DC Input Ignition Control |
| Mechanical Spec |
Dimension (W*H*D) : 194*127*29 mmWeight : 0.7 kg | Connector Type |
Standard Industry Waterproof Connector SMA Female Connector*2 (GNSS&4G) |
| Button | Power Key*1, Function Key*2 | Customize | Support |
