GPS for heavy equipment comes in three accuracy tiers rather than one, and fitting the wrong tier either wastes subscription money on machines that never needed it or leaves a grader unable to work to design. CF-Device’s VCM terminals support GPS/BDS/GLONASS reception, with optional centimetre-level RTK on many models, so a mixed fleet can specify per machine rather than per fleet.
TL;DR
- Three tiers: standard GNSS (2–5 m), DGPS/SBAS (0.3–1 m), RTK (2–3 cm)
- Only machines whose implement position matters — excavators, graders, piling rigs — need RTK
- Haul trucks and service vehicles work fine on standard GNSS at a fraction of the running cost
- Site conditions break assumptions road-fleet GPS relies on: pit walls, dead zones, constant vibration
- CF-Device VCM terminals: GPS/BDS/GLONASS reception, optional cm-level RTK on most models (confirm per model), IP65–IP67 and MIL-STD-810 testing, −30°C to +70°C

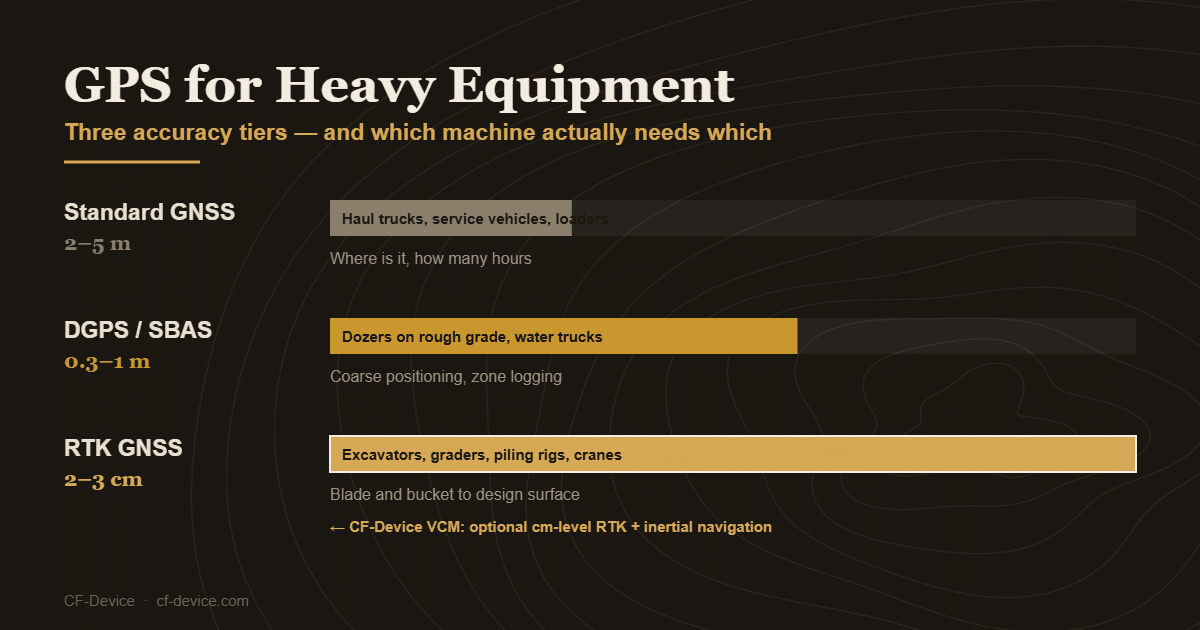

GPS for Heavy Equipment: The Three Tiers, and Which Machines Belong in Each
The tier a machine needs is determined by one question: does anything physical move to the position the GPS reports? If the answer is no — the fleet office just needs to know where the machine is and how many hours it ran — standard GNSS is sufficient. If a blade, bucket, or pile follows that coordinate, the tolerance collapses from metres to centimetres. That is the whole of heavy equipment GPS accuracy in one question.
| Tier | Accuracy | Machines | Recurring cost |
|---|---|---|---|
| Standard GNSS | 2–5 m | Haul trucks, loaders, water trucks, service vehicles | None |
| DGPS / SBAS | 0.3–1 m | Dozers on coarse grade, compaction tracking | Low or free (regional) |
| RTK GNSS | 2–3 cm | Excavators, graders, piling rigs, crane placement | Correction subscription or own base station |
In short: pay for RTK on the machines that cut, place, or drive something to a design position — not on the machines that only need to be found.

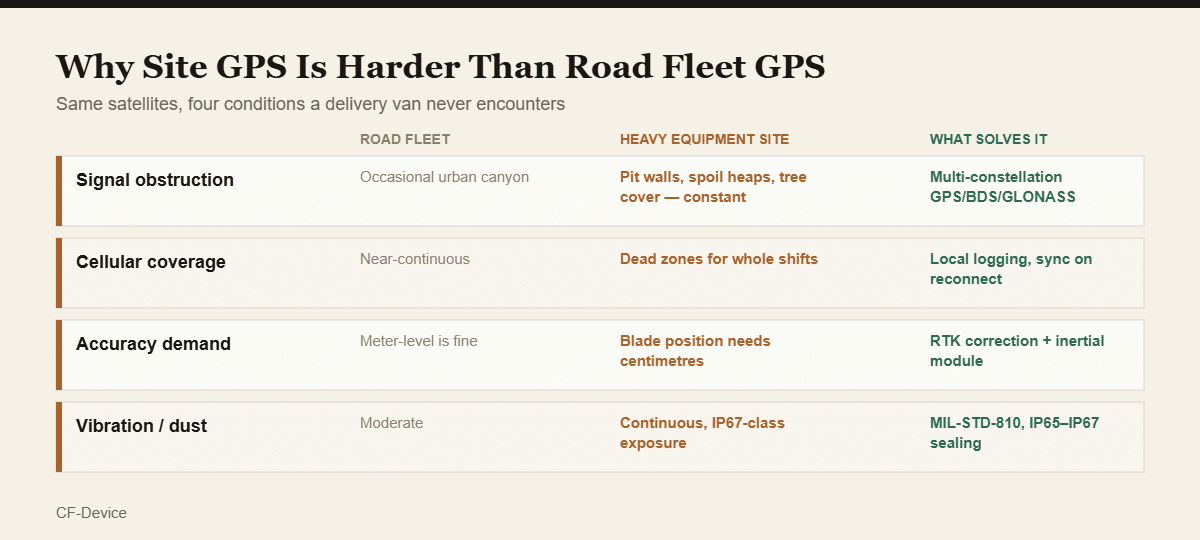

Why Site GPS Is Harder Than Road Fleet GPS
A delivery van and an excavator use the same satellites, but almost none of the surrounding assumptions carry over. Pit walls, spoil heaps, and tree cover block sky view for long stretches; cellular dead zones last whole shifts rather than minutes; and the unit itself absorbs vibration continuously rather than incidentally. CF-Device’s answer to the first is multi-constellation GPS/BDS/GLONASS reception, to the second local logging where the platform supports it, and to the third MIL-STD-810 vibration testing and IP65–IP67 sealing, depending on the model.
The dead-zone case is the one most often underestimated in procurement. Positioning itself keeps working without cellular — the satellites don’t care — but a system that only streams live data has a permanent hole in the shift record. Why that distinction decides whether utilisation reports are defensible is set out in fleet vehicle GPS tracking systems: the four layers.
What RTK Actually Buys on a Machine
On an excavator or grader, centimetre positioning is not a reporting improvement — it changes what the operator can do without a survey crew. The terminal compares live bucket or blade position against the design surface and displays cut/fill directly, replacing the stop-check-adjust cycle with continuous guidance. Machine attitude matters as much as position once an implement is following a design model, which is why inertial navigation is worth asking about: CF-Device lists it as an option on the TANK V2, while the other models’ datasheets do not list an inertial unit, so confirm it where a project depends on it.
The application detail is covered in excavator slope grading and depth assistance, compaction and blade readouts in road roller and bulldozer monitoring, port and crane work in precision positioning for port and yard equipment, and the correction-source mechanics in our GNSS positioning guide.
Heavy Machine GPS: What Each CF-Device Model Offers
Heavy machine GPS options differ by model, and “optional RTK” is not on every datasheet. This is what the datasheets list:
| Positioning options listed | Models |
|---|---|
| Meter or centimeter | VCM V12, V12 PRO, V10 PRO, V8 PRO, S10-2, S7, V7A-2 (no sub-meter), TANK V2 |
| Meter, sub-meter or centimeter | VCM V7-2, S10-2 PRO, M10 |
| RTK GNSS option | VCM V10-2 |
| Set by the GNSS module chosen (UM980 / UM982 are RTK-grade) | VCM V12-2, S10-2 PLUS |
| Meter only | VCM V7 PRO |
So the VCM V7 PRO suits the “needs to be found” tier but not RTK work, and the VCM S10-2 PLUS lists the MXT906B, UM980 and P20E modules with the UM982 as an option. The TANK V2 is the one with an optional inertial unit. Confirm the exact module and tier on the datasheet of the model you are quoting.
Does every machine on a site need RTK?
No, and specifying it fleet-wide is one of the more common budget errors in equipment GPS. RTK carries a recurring correction-service cost per unit, and a haul truck cycling between a pit and a stockpile never uses the precision it pays for. A mixed site typically needs RTK on a minority of machines — the ones with implements following a design surface — while the rest run standard GNSS. Because RTK is an option on the same VCM platform on most models, both tiers can share one mounting standard and one MDM console rather than splitting into two hardware programmes; the supply range (5–36V or 9–36V) differs by model, so check it against the machines.
An Illustrative Deployment Example
Picture a civil contractor running 34 machines that specifies RTK across the entire fleet on the reasoning that higher accuracy is never wrong. Reviewing subscription cost after a season shows that 19 of those units — haul trucks, water trucks, and service vehicles — never performed a task requiring better than metre-level positioning. Re-specifying those 19 to standard GNSS cuts recurring cost with no measurable change in output, while the 15 excavators, graders, and dozers doing design-surface work continue to justify RTK fully.
Where the Positioning Data Goes
Position is rarely the only thing a site terminal reports. On a CF-Device VCM unit the same install also reads machine data over CAN bus — engine hours, fault codes, hydraulic state — wherever the machine outputs it, which is what turns a location feed into utilisation and maintenance data. The protocol layer is covered in our CAN bus and J1939 integration guide, the hardware tradeoff between integrated terminals and standalone trackers in fleet GPS tracking hardware, the mining-specific case in rugged vehicle terminals for mining, and the full spec sequence in the rugged vehicle tablet hardware buyer’s guide.
Common Questions
Does GPS keep working underground or in a deep pit?
Not underground — satellites need sky view. In a deep pit, multi-constellation reception maintains a usable fix far more reliably than single-constellation GPS, since more satellites are visible at any given moment.
Can a machine be upgraded from standard GNSS to RTK later?
That depends on the model. On the datasheets, RTK or centimeter-level positioning is listed as an option chosen with the unit, so confirm at purchase whether a later upgrade is possible rather than assuming it.
Is an RTK base station better than a correction subscription?
An owned base station removes the recurring fee and works without cellular, which suits a fixed long-term site. A network subscription suits contractors moving between sites frequently.
Which CF-Device models support centimetre-level RTK?
Centimeter-level positioning is listed as an option on the VCM M10, V12, V12 PRO, V10 PRO, V8 PRO, V7-2, V7A-2, S10-2, S7, S10-2 PRO and TANK V2, as an RTK GNSS option on the V10-2, and through RTK-grade modules on the V12-2 and S10-2 PLUS. The VCM V7 PRO is listed at meter level only. Inertial navigation is listed as an option on the TANK V2 only, so confirm anything beyond that on the datasheet.
Interested in specs or a quote? Contact our team to discuss positioning tiers for your equipment fleet.
