CF-Device’s VCM S10-2 is the baseline configuration in the S10 series — an entry-level 10.1″ rugged vehicle-mount tablet with no unnecessary extras, validated across years of fleet deployment, for buyers who value a proven track record over cutting-edge specs.
TL;DR

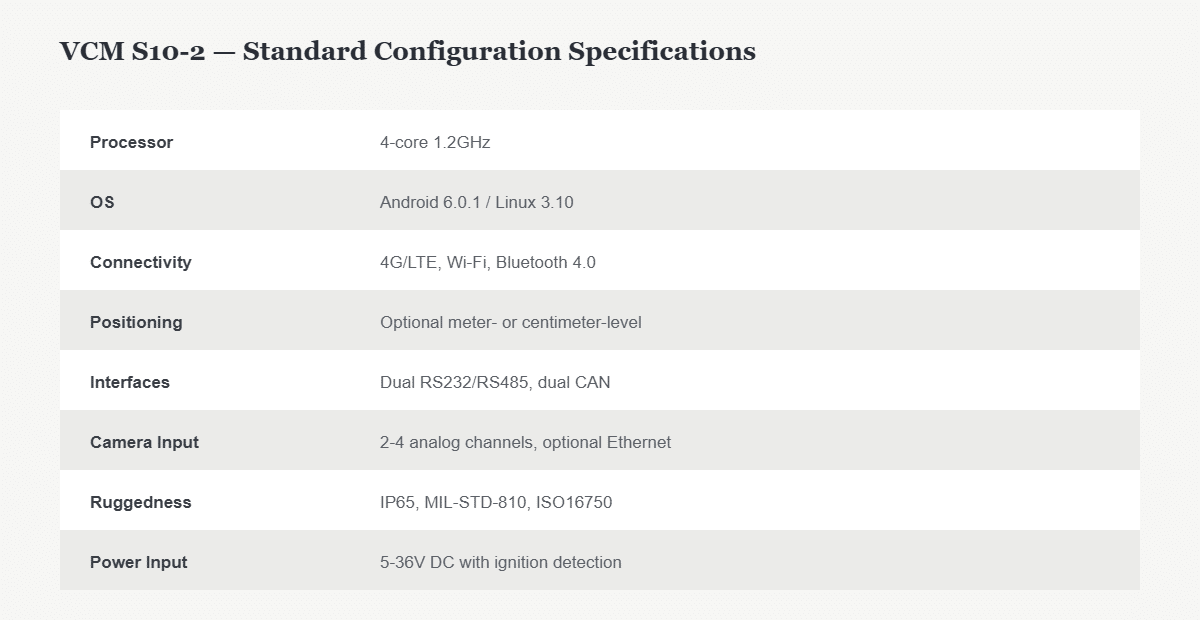

- Quad-core Cortex-A7 at 1.2 GHz, Android 6.0.1 / Linux 3.10 dual system — mature, stable software, 2 GB RAM and 16 GB storage that cannot be expanded
- 4G/LTE (no 5G), Wi-Fi 2.4 GHz only, Bluetooth 4.0 BLE, with optional meter- or centimeter-level positioning and OEM GNSS board support
- CF ISOBUS VT and CF AVM 360° are listed even at this entry tier
- Two RS232, one RS485, one or two CAN channels, two or four CVBS analog cameras, optional 100M Ethernet
- IP65, third-party measured vibration (7.0 Grms) and shock (50 g), −30°C to +70°C, 5-36V DC with ignition control
VCM S10-2: Why Proven Track Record Sometimes Beats Cutting-Edge Specs
Sometimes the right hardware decision is the one with the longest track record. The VCM S10-2 is the baseline configuration in the S10 series — no unnecessary extras, just a rugged 10.1″ terminal that has been deployed and validated across years of fleet use.
Straightforward, Reliable Core
A quad-core 1.2 GHz Cortex-A7 runs Android 6.0.1 or Linux 3.10 — a stable, mature software combination rather than the latest silicon, which for many fleet-management applications is exactly the point: fewer variables, more predictable long-term behavior. It has no NPU. The 10.1″ capacitive display is 1024×600 at 750 cd/m² with five-point touch, and 2 GB of RAM and 16 GB of storage are fixed, so size the applications you plan to run accordingly.
Core Connectivity Covered
4G/LTE cellular connectivity (no 5G), Wi-Fi on 2.4 GHz only (802.11 b/g/n), and Bluetooth 4.0 BLE cover standard fleet communication needs. Optional meter-level or centimeter-level positioning boards let customers choose their accuracy tier without paying for capability they don’t need, and OEM GNSS boards are supported. ISOBUS VT support is listed as CF ISOBUS VT, so even the standard-configuration model can run implement interfaces.
Practical I/O for Common Deployments
Two RS232 ports, one RS485 port and one or two classic CAN channels (J1939, CANopen and ISO 15765 are explicitly listed) provide sufficient integration options for most vehicle-management applications; the CAN side is covered in CAN bus and J1939 integration. Camera inputs are two or four CVBS analog channels on M12 4-pin connectors — not AHD — which supports AVM 360° at analog quality, with a 100M Ethernet port as an option, one USB 2.0 port, one 12V output, two digital inputs, three digital outputs and 1PPS support. The datasheet lists no analog voltage inputs.
Rugged at a Sensible Price Point
IP65 protection, a −30°C to +70°C operating range and third-party measured vibration (7.0 Grms) and shock (50 g) results mean even the standard model doesn’t compromise on the basics. A 5-36V DC input with ignition control and a delayed shutdown (5 seconds by default, configurable) completes a spec sheet built for a full working life in the field, not a showroom demo. Over/under-voltage and reverse-polarity protection and salt-spray testing are not listed for this model, so confirm them if the site needs them. See our IP65 vs IP67 rating guide for how sealing compares across the lineup.
Four Pin Definitions: Confirm Before You Order
The S10-2’s 26-pin connector comes in four pin definitions, and the model also has three front-panel versions (old, new and SE), so an order or a replacement has to start from the exact variant already in the vehicle. The harness group is C, shared with the S10-2 PRO, S10-2 PLUS, V10-2 and V7A-2. The body is 281 × 181 × 42 mm and 1.5 kg, with a 47.09 × 48.41 mm hole pattern for a RAM-101U bracket, which is exactly the size of the VCM V10 PRO — the brackets match, but the V10 PRO harness is a different family and is not interchangeable.

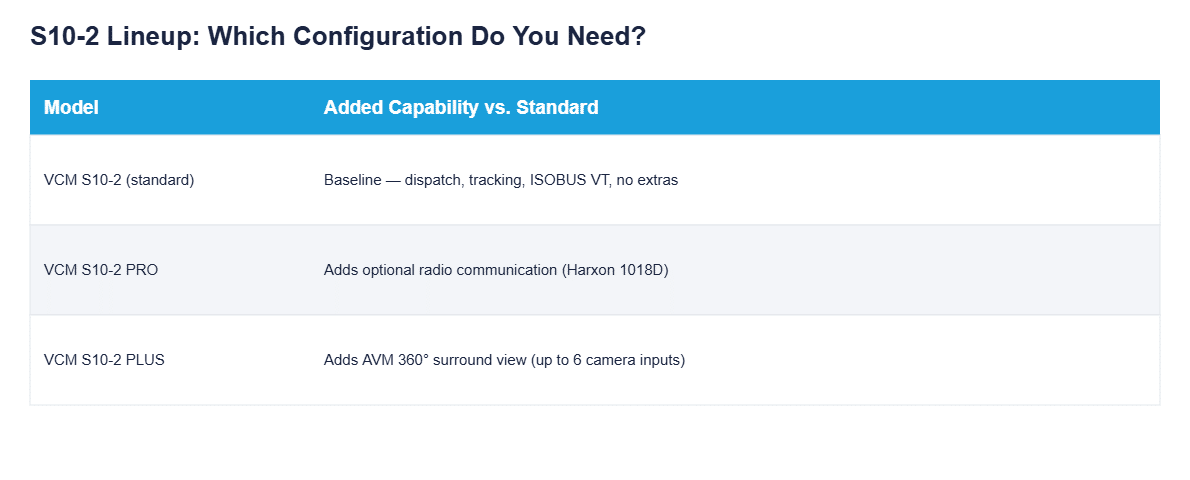

S10-2 Next to S10-2 PRO and S10-2 PLUS
The S10-2 name covers three configurations, and the choice between them comes down to which added capability actually matters for a given fleet. The standard S10-2 is the older platform: Cortex-A7, Android 6.0.1, CVBS cameras (two or four), one or two CAN channels, no radio. The VCM S10-2 PRO moves to a Cortex-A55 platform and adds radio communication, up to eight AHD cameras and up to four CAN channels. The VCM S10-2 PLUS adds a 1280×800 display and up to six AHD cameras on the same newer platform. Start with the standard model for core dispatch, tracking and implement-control work, and step up only when a specific requirement — AHD camera quality, radio, a higher-resolution screen — is confirmed.
Who It’s For
Fleets working within a defined budget who still need genuine industrial-grade reliability — not a consumer tablet in a rugged case — will find the VCM S10-2 delivers proven durability without paying for features a basic deployment won’t use, the same value proposition covered in our fleet management guide. Compare it to the compact VCM V7-2 if a smaller footprint matters more than the 10.1″ display. The wider hardware decision is in the rugged vehicle tablet hardware buyer’s guide.
Common Questions
Is Android 6.0.1 a security or compatibility risk for new deployments?
For closed fleet-management applications with no direct internet-facing dependencies, a mature OS version reduces compatibility surprises. It is still an old release, and the datasheet makes no commitment on security updates, so confirm that any newer application you plan to run will install and work.
Does the standard configuration sacrifice ruggedness to hit a lower price?
Not on the basics — it has IP65 sealing and third-party measured vibration and shock results, the same as other VCM models at that level; the S10-2 reduces feature count, not core durability. Some models list IP67, salt-spray results or over/under-voltage protection that the S10-2 datasheet does not.
Are the S10-2’s cameras AHD or analog?
Analog. The S10-2 has two or four CVBS camera inputs, not AHD. If you need AHD cameras or more than four, choose the S10-2 PRO or PLUS.
Can VCM S10-2 be upgraded to centimeter-level positioning later?
Positioning accuracy is selected via optional boards at time of order (meter-level or centimeter-level) — check with your CF-Device contact on whether a hardware upgrade path exists for deployed units.
Should every fleet start with VCM S10-2 before considering PRO or PLUS?
As a general rule, yes — start with the standard configuration and step up to the PRO (radio, more cameras and CAN channels) or PLUS (1280×800 screen, AHD cameras) only once a specific need is confirmed.
The S10-2 is the usual entry point into the range, and the wider decision it sits inside — size, sealing, power, interfaces, and the management platform — is worked through in our complete guide to rugged vehicle tablets.
Interested in specs or a quote? Contact our team or view the full VCM S10-2 product page.
