The VCM V7-2 packs a Cortex-A55 platform, 5G connectivity and a strong interface set into a compact 7″ chassis — for vehicles and machinery where a 10″ or 12″ display simply doesn’t fit. It is the model buyers search for as the “V7.2 tablet”, and it is a different design from the VCM V7A-2 and VCM V7 PRO, so check the model carefully.
TL;DR
- 7″ chassis at 200 × 134 × 32.52 mm and 0.69 kg — fits tight cab layouts
- Quad-core Cortex-A55 at 2.0 GHz with a 0.8 TOPS NPU, Android 11.0 / Linux 5.10 dual system
- 4G/5G connectivity, 2.4G/5G Wi-Fi, Bluetooth 4.2 — no compromise on communication for the smaller size
- Three CAN channels (two classic CAN plus one CAN FD), gigabit Ethernet on a dedicated M12 connector, USB 2.0
- IP65 as standard (IP67 on request), 48-hour salt-spray tested, 5-36V DC, −30°C to +70°C
Why Not Every Vehicle Has Room for a Larger Display

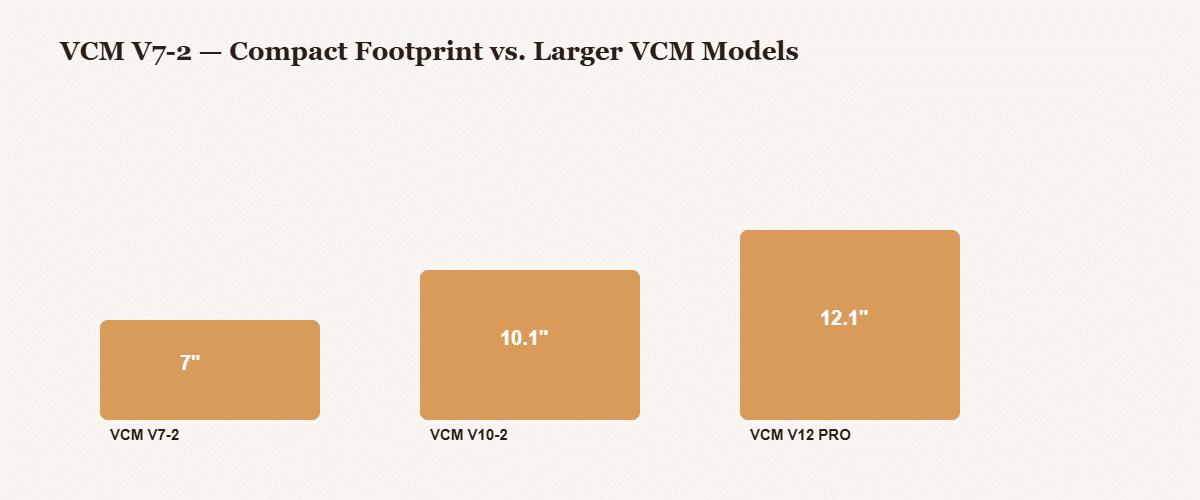

Not every vehicle has room for a 10″ or 12″ display — compact machinery, specialty vehicles, and tight cab layouts often call for a smaller footprint without giving up rugged performance. The VCM V7-2 brings a modern platform and connectivity to a 7″ chassis measuring 200 × 134 × 32.52 mm. How size trades off against the rest of a specification is covered in how to choose the right tablet screen size for your vehicle.
VCM V7-2 Performance in a Smaller Footprint
A quad-core Cortex-A55 processor at 2.0 GHz with an ARM G52 2EE GPU and a 0.8 TOPS NPU (the “1T” in the product name refers to overall computing power) runs Android 11.0 or Linux 5.10 as a dual system, with Qt 5.15.7 listed for custom interfaces. Memory is 2 GB expandable to 8 GB and storage is 16 GB expandable to 256 GB. The 7″ anti-glare display runs at 1024×600 and 750 cd/m². The dual-OS design is explained in dual Android/Linux architecture.
5G Connectivity in a Compact Form
4G/5G connectivity means the V7-2 doesn’t sacrifice communication speed for size — a meaningful advantage for smaller vehicles that still need real-time data reporting. Positioning is offered at meter, sub-meter or centimeter level as an option.
Interface Configuration That Punches Above Its Size
Three CAN channels (two classic plus one CAN FD), up to two RS232 ports plus a debug RS232, one RS485 port, gigabit Ethernet on its own M12 X-code connector, and a USB 2.0 port give this 7″ terminal one of the stronger interface sets in its size class. There are also two analog voltage inputs (up to 12V), two 12V outputs and two digital inputs. Camera inputs are AHD 720p×4 or 1080p×2, with CF AVM 360° listed. The CAN side is covered in CAN bus and J1939 integration.
Rugged Certification for Extended Field Duty
The V7-2 is IP65 as standard, with IP67 available as a custom build, and a 48-hour salt-spray result is listed. Third-party measured vibration (7.0 Grms) and shock (50 g) results are on the datasheet, and the unit operates from −30°C to +70°C on 5-36V DC input with ignition detection and over-current, over-voltage, under-voltage and reverse-polarity protection. A programmable 16-LED light bar adds visual signaling for applications that need it. See our IP65 vs IP67 rating guide for how this compares across the lineup.
Flexible Mounting
At 0.69 kg, the V7-2 mounts on a RAM-101U bracket with four M5×10 screws — practical for retrofit installations where space and mounting options are constrained.
Harness Group D: Only One Model Uses It
The V7-2 uses harness group D, which no other model shares. It has a 26-pin connector like some other VCM models, but the pin definitions are completely different from group C, and plugging a harness from another model into it risks damaging the hardware. That includes the VCM V7A-2, which has the same body size but uses group C. Check which model is in the vehicle before ordering a cable or a replacement unit.
What the 7″ Chassis Costs You
Putting a modern platform and a strong interface set into a 7″ chassis isn’t free — the trade-off shows up in display area and in camera-input headroom rather than in connectivity. A fleet comparing the V7-2 with a 10″ or 12″ model should expect a smaller viewing area for map or multi-pane data views, and fewer camera inputs than the models that list up to eight AHD inputs, such as the VCM V12-2 platform’s larger siblings. The V7-2 also has USB 2.0, not USB 3.0. Where cab space is the binding constraint rather than screen preference, that is the right trade to accept; where a large display genuinely adds value (multi-camera AVM monitoring, detailed field mapping), a 10″ or 12″ model remains the better match.
Who It’s For
Small agricultural machines, specialty vehicles, and any application where cab space is limited but connectivity and computing are still required will get the most value from the V7-2’s compact design, the same profile covered in our smart agriculture terminal guide. Compare it to the anti-glare VCM V7A-2, which is a reduced-specification variant, if sun legibility is the priority and you do not need three CAN channels or CAN FD. Its CF ISOBUS VT support suits implement control, and its AVM 360° support suits compact vehicles with blind spots.
Common Questions
Does the smaller 7″ size mean reduced processing power compared to larger models?
The V7-2 has a quad-core Cortex-A55 at 2.0 GHz and a 0.8 TOPS NPU. Compute differs by model across the lineup, so compare the datasheets; the size reduction itself affects display and chassis footprint rather than connectivity.
Can VCM V7-2 handle the same interface load as a 10″ model?
Largely yes — three CAN channels including CAN FD and gigabit Ethernet make it comparable to some 10″ models, though larger terminals offer more camera-input headroom and USB 3.0 on some models.
Is VCM V7-2 suitable for retrofit installations with limited mounting space?
Yes — at 0.69 kg and mounting on a RAM-style bracket, it is specifically suited to retrofit installs where space is constrained.
When should I choose a 10″ or 12″ model instead of VCM V7-2?
When the application genuinely benefits from a larger viewing area or more camera inputs — such as multi-camera AVM monitoring or detailed field mapping — rather than when cab space is the primary constraint.
Is the V7-2 IP67?
It is IP65 as standard. IP67 is available as a custom build, so state the sealing level you need when you request a quote.
A 7″ unit is chosen for cab space rather than capability. How size trades off against everything else in the specification is set out in our complete guide to rugged vehicle tablets and the rugged vehicle tablet hardware buyer’s guide.
