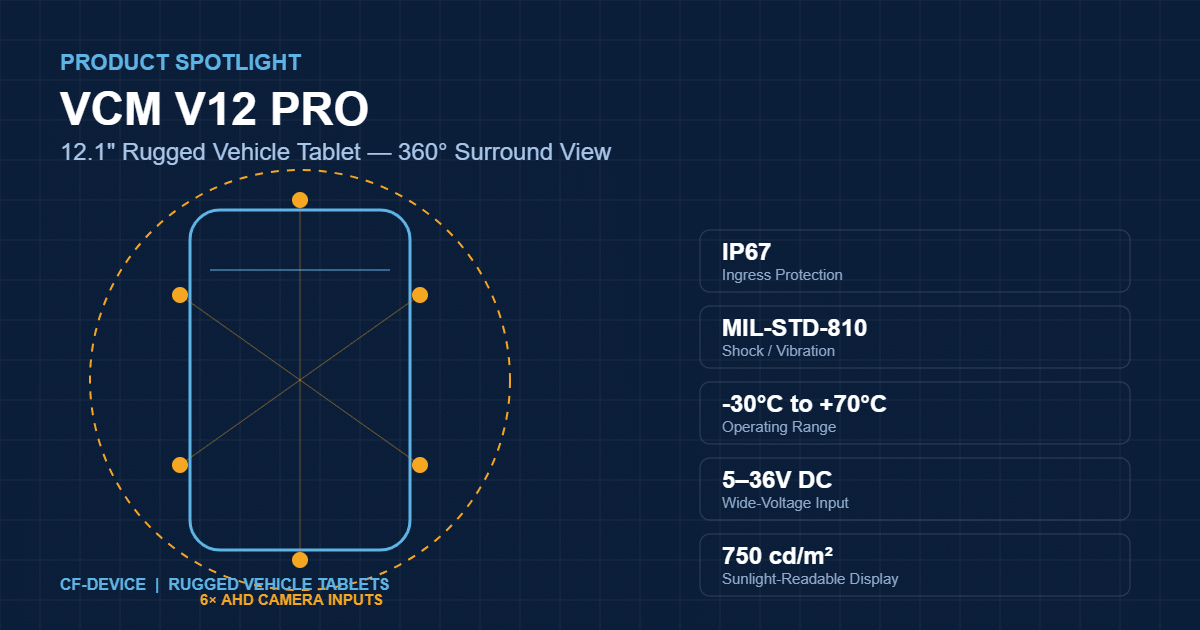

CF-Device’s VCM V12 PRO is a 12.1-inch rugged vehicle-mount tablet built for heavy equipment fleets that need one screen to handle both 360° perimeter safety monitoring and implement or system control. It is IP67 sealed and takes up to eight AHD camera inputs for AVM 360° surround view.
TL;DR
- 12.1″ capacitive display at 750 cd/m² and 1280×800, with an optional anti-glare screen for direct sunlight
- AVM 360° surround view from up to 8 AHD camera inputs (1080P×6, 720P×8, or 720P×4 plus 1080P×4) — not a single reversing camera bolted on
- IP67, 48-hour salt-spray result, −30°C to +70°C; the datasheet lists ISO 16750 for this model
- CF ISOBUS VT support lets the same terminal run a compliant implement interface
- 5-36V DC wide-voltage input with ignition detection and over/under-voltage and reverse-polarity protection
Why Blind Spots Are a Heavy-Equipment Problem, Not a Convenience Gap
Excavators, wheel loaders, and specialty construction vehicles have structural blind spots that no mirror placement fully solves — the operator’s line of sight is blocked by the cab frame, counterweight, or the machine’s own boom on one or more sides. Many serious proximity incidents on construction and mining sites trace back to exactly this: a person or obstacle in a zone the operator couldn’t see and no system flagged. The VCM V12 PRO was built around closing that specific gap rather than adding a screen as an afterthought, the same blind-spot risk covered in our mining terminal guide.
A Display Built to Be Seen From the Cab
The 12.1″ capacitive touchscreen runs at 1280×800 resolution and 750 cd/m² brightness, and an anti-glare screen is available as an option to keep it legible in direct sunlight — a common failure point for consumer tablets pressed into vehicle service, where midday glare can wash out a standard display within minutes. The datasheet does not list the number of touch points or a glove mode, so test it with the gloves your operators wear.
AVM 360° Surround View, Not Just a Rear Camera
Where many “smart” displays only add a single reversing camera, the VCM V12 PRO supports up to eight AHD camera inputs and stitches them into a genuine 360° surround view with CF AVM 360°. That makes it a real perimeter-awareness system for excavators, loaders, and other machinery where blind spots are a safety liability, rather than a convenience feature for parking.
Eight Cameras, Two Decoder Groups
The camera count depends on resolution, because the video input is handled by two decoder groups of different capability. The supported combinations are six cameras at 1080p, eight cameras at 720p, or four at 720p plus four at 1080p. The two groups cannot be mixed freely, so plan the camera layout against these three combinations rather than assuming any mix of eight. The camera type is AHD.
Built for the Field, Not the Office
| Item | Specification |
|---|---|
| Ingress protection | IP67 |
| Vibration / shock | Third-party measured: 7.0 Grms and 50 g / 18 ms |
| Road-vehicle standard | The datasheet lists ISO 16750 for the V12 PRO |
| Operating temperature | −30°C to +70°C |
| Salt-spray result | 48 hours |
| Power input | 5-36V DC, ignition detection, over/under-voltage and reverse-polarity protection |
The wide-voltage DC input lets the VCM V12 PRO draw power directly from a vehicle’s electrical system without a separate power conditioning unit — a detail that matters when retrofitting a fleet where every added component is one more point of failure. The compute side is a quad-core Cortex-A55 at 2.0 GHz with a 0.8 TOPS NPU, running Android 11.0 or Linux 5.10 as a dual system, with 2 GB RAM expandable to 8 GB and 16 GB storage expandable to 256 GB.
Four CAN Channels and Gigabit at the Same Time
Four SocketCAN channels supporting J1939, CANopen and ISO 15765, two RS232 ports plus a debug port, one RS485 port, gigabit Ethernet on a dedicated M12 connector and dual 26-pin connectors give system integrators the I/O headroom to wire the VCM V12 PRO into existing vehicle control networks. The four CAN channels and gigabit Ethernet can run at full configuration together, because CAN3 and CAN4 use their own pins on the second connector — something the S10-2 PRO cannot do. There are also four analog inputs (two voltage, two current), four 12V outputs and four digital inputs. The CAN side is covered in CAN bus and J1939 integration. ISOBUS VT support means the same terminal can also run the interface for a compliant implement — useful for mixed fleets that already standardized on ISOBUS elsewhere. For ingress protection trade-offs across the lineup, see our IP65 vs IP67 rating guide.
Harness Group E and the Drawing Note
The V12 PRO is the only model with two 26-pin connectors, and it uses harness group E, a definition no other model shares, so it does not take a harness from any other unit. One more point for installers: the silkscreen numbers on the unit do not always match the drawing, and the drawing is the reference for wiring, so wire from the drawing rather than from the labels. The body is 317.8 × 219.6 × 34.5 mm and 1.73 kg, mounted on a RAM-101U with a 30 × 38 mm hole pattern.
Who It’s For
Fleets running heavy machinery — excavators, wheel loaders, cranes, specialty construction vehicles — where a single large display needs to handle both perimeter safety monitoring and implement or system control will get the most value from the VCM V12 PRO’s combination of screen size, camera capacity, and IP67 sealing. Compare it to the VCM V12 if one CAN channel, two camera inputs and a 9-36V supply are enough, and with the VCM V12-2 if a newer platform with USB 3.0 and CAN FD matters more than camera count. For the full platform-level decision across screen classes, OS, and interface sets, see our rugged tablet hardware hub.
Common Questions
How many cameras can VCM V12 PRO’s AVM system support?
Up to eight AHD camera inputs: six at 1080p, eight at 720p, or four at 720p plus four at 1080p. The two decoder groups cannot be mixed freely, so confirm your layout against these combinations.
Can VCM V12 PRO run ISOBUS implements as well as handle surround-view monitoring?
Yes — it supports CF ISOBUS VT for implement control alongside its CF AVM 360° camera system, so one terminal covers both functions.
What voltage range does it accept for vehicle installation?
5-36V DC, with ignition detection and over/under-voltage and reverse-polarity protection, letting it connect directly to a vehicle’s electrical system.
How many CAN channels does the V12 PRO have?
Up to four SocketCAN channels, supporting J1939, CANopen and ISO 15765, and they can be used together with the gigabit Ethernet port.
