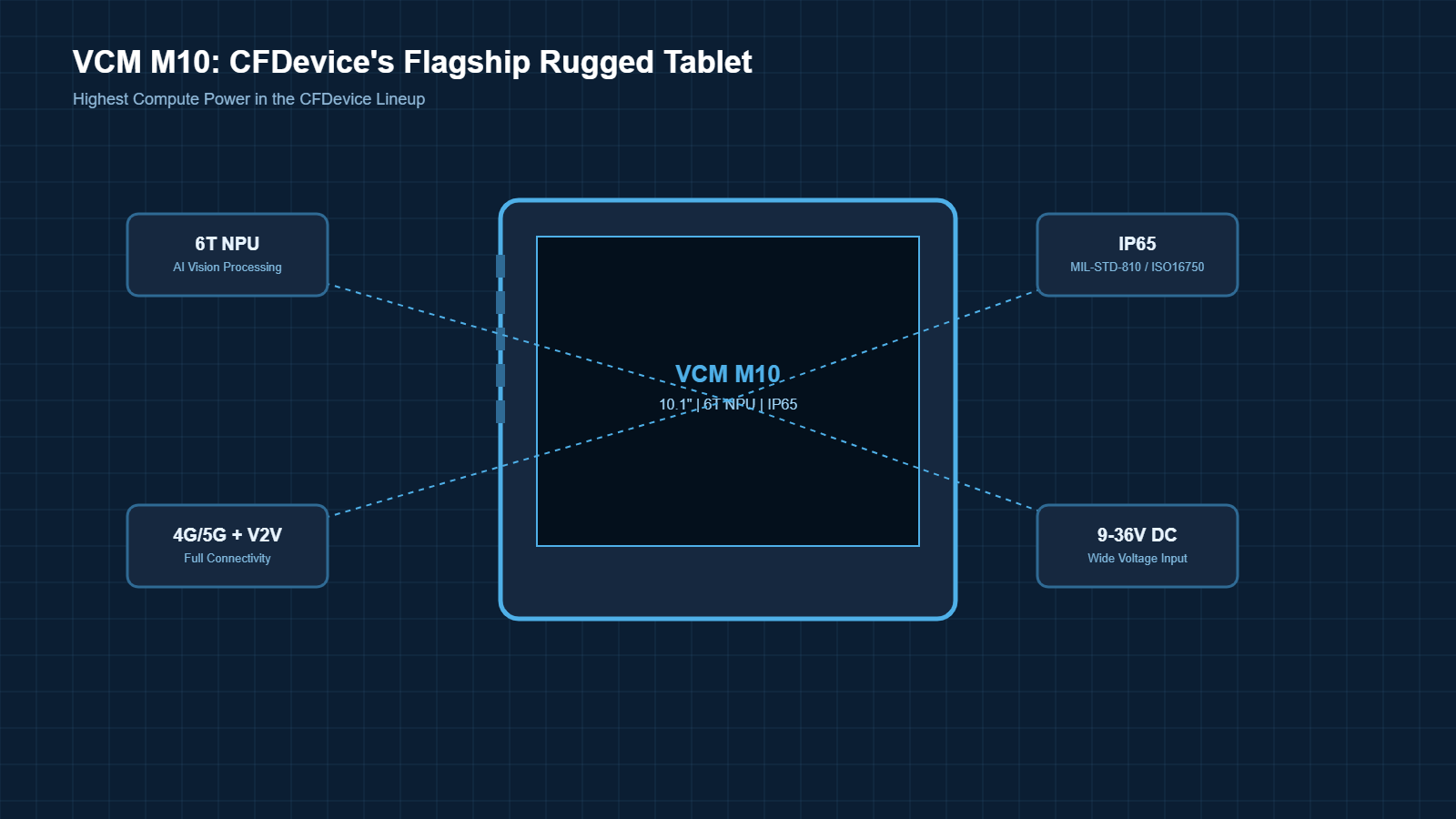

The VCM M10 is CF-Device’s flagship rugged vehicle tablet — a rugged vehicle-mount tablet with the highest compute power in the lineup: a 6 TOPS NPU, a 10.1″ high-brightness display, and dual Android 14 / Linux 6.1 support for demanding fleet and machinery deployments.
TL;DR
- 6 TOPS NPU — the highest AI processing power across CF-Device’s entire tablet range
- 10.1″ display at 1280×800 and 750+ nits, with anti-glare display and an ambient-light sensor for sunlight readability
- IP65, third-party measured vibration (7.0 Grms) and shock (50 g), 48-hour salt spray result, −30°C to +70°C operating range
- 4G/5G, WiFi 6, Bluetooth 5.3, and V2V (vehicle-to-vehicle) communication built in
- 5-36V DC wide-voltage input with reverse-polarity protection and delayed power-off backup
Why the VCM M10 Is the Flagship Model
Does every fleet need 6 TOPS of NPU compute? Not necessarily — but for operations running real-time AI vision (pedestrian detection, lane monitoring, driver behavior analysis), the M10’s processing headroom is what separates a tablet that can run those workloads smoothly from one that lags. Among CF-Device’s lineup, the M10 carries the highest compute ceiling, making it the reference model for AI-heavy deployments rather than a general-purpose display, the same on-device AI need covered in our NPU computing guide and in 6 TOPS NPU explained. Flagship here means compute, not screen size: the M10 is a 10.1″ model, not a 12″.
VCM M10 Full Specifications
| Category | Spec |
|---|---|
| CPU / NPU | 8-core 64-bit CPU, 6 TOPS NPU |
| Memory | 8GB RAM / 32GB ROM (expandable to 128GB, TF card supported) |
| OS | Android 14.0 / Linux 6.1 (dual-system) |
| Display | 10.1″ 5-point capacitive touch, 1280×800, 750+ nits, anti-glare, ambient-light sensor |
| Connectivity | 4G/5G, WiFi 6 (2.4G & 5.8G), Bluetooth 5.3, V2V |
| Interfaces | CAN×2, RS232×2, RS485×1, USB 2.0×1, 100M Ethernet×1 (expandable to Gigabit), Gigabit vehicle Ethernet×1 |
| GNSS | GPS/BDS/GLONASS, optional meter/sub-meter/centimeter-level positioning |
| Power input | 5-36V DC, ACC ignition detection, reverse-polarity protection, delayed power-off backup |
| Protection rating | IP65; third-party measured vibration 7.0 Grms and shock 50 g |
| Operating temp | -30°C to +70°C (storage: -40°C to +85°C), 48-hour salt spray tested |
| Camera inputs | AHD 720p×8 or 1080p×8 |
| Software | CF AVM 360°, DMS, FCW, MDM (ISOBUS VT is not listed on the M10 datasheet; confirm before ordering) |
| Connectors | 2 × 26-pin, SMA, TNC, USB Type-A (harness pin definitions not yet verified against other models; do not assume interchangeability) |
| Dimensions / weight | 270.9 × 173.5 × 33.2mm, 1.3kg |
| Buttons | 5 programmable keys + power key, laid out for gloved operation |
(per CF-Device manufacturer datasheet)
What Only the M10 Lists
Five items appear on the M10 datasheet and on no other VCM model’s: V2V vehicle-to-vehicle communication, forward collision warning (FCW), the dual Ethernet (a gigabit vehicle port plus a 10/100 port that can be upgraded to gigabit), eight camera inputs that all support 1080p, and Android 14 with Linux 6.1. DMS and AVM 360° are also listed on this model, which is why it is the unit to look at when both run together on one terminal.
Total Cost Perspective
The M10’s premium sits mainly in its NPU — for fleets not running on-device AI vision, a mid-tier model like the VCM V10-2 covers most connectivity and durability needs at lower cost. The M10’s value shows up specifically when AI inference workloads (360° surround detection, DMS fatigue monitoring) need to run locally without lag, avoiding the latency and connectivity dependency of cloud processing, the same integrated-platform approach covered in One Tablet, Four Systems.
Decision Path
- Standard fleet tracking, no on-device AI → a mid-tier VCM model is typically sufficient
- Running 360° AVM + DMS simultaneously on one device → the M10’s NPU headroom avoids performance bottlenecks
- Mixed-brand implement fleet also needing ISOBUS VT → the M10 datasheet does not list ISOBUS VT, so either choose a model whose datasheet lists CF ISOBUS VT, or ask CF-Device to confirm it on the M10 first; how ISOBUS VT works is covered in What Is ISOBUS VT
When a Standard Model Is Still Fine
If the deployment doesn’t run real-time AI vision processing, the M10’s 6 TOPS NPU is headroom that goes unused — a lower-tier model in the VCM range delivers the same ruggedness and connectivity at a lower cost. Compare it to the VCM V12 PRO, CF-Device’s 12.1″ high-performance model, if screen size matters more than raw NPU compute. For the full platform-level decision behind any of these models — screen class, OS choice, positioning tier, and interface set — see our rugged tablet hardware hub.
Other Names for the Same Question
Buyers often refer to the range as the VCM tablet family, and within it the M10 is the AI-ready flagship rugged vehicle tablet. It is an IP65 tablet for dust and water-jet exposure in open cabs; the IP67 models in the range are compared in the buyer’s guide linked below.
Common Questions
What makes the M10 different from other VCM models?
Primarily its 6 TOPS NPU — the highest compute power in the CF-Device lineup, purpose-built for AI vision workloads rather than display-only use.
Does the M10 support both Android and Linux?
Yes — it runs Android 14.0 and Linux 6.1 as a dual-system configuration on the same hardware.
What’s the M10’s protection rating?
IP65, with third-party measured vibration (7.0 Grms) and shock (50 g) results, a −30°C to +70°C operating range, and a 48-hour salt spray result.
Does the M10 support ISOBUS VT?
It is not listed on the M10 datasheet. If you need it, ask CF-Device to confirm it for the M10, or choose a model whose datasheet lists CF ISOBUS VT.
Every VCM model is listed side by side in the rugged vehicle tablet hardware buyer’s guide. The M10 sits at the top of a range that spans 7″ to 12.1″ and screenless units, and how the hardware, the management platform and the deployment scenarios fit together is set out in our complete guide to rugged vehicle tablets.
