CF-Device’s VCM V12 is certified as an ISOBUS VT terminal, and the standard behind that is ISO 11783-6 that lets a single in-cab display run the control interface of any compliant implement — sprayer, seeder, baler — regardless of manufacturer.
TL;DR
- ISOBUS VT (ISO 11783-6) lets one certified terminal run the control interface of any compliant implement, regardless of brand
- Fleets running 3+ implement brands typically consolidate to one cab display, cutting hardware cost and cab wiring complexity
- Not every “smart” display is a true VT client — confirm ISO 11783-6 certification and simultaneous-connection limits before buying
- CFDevice’s VCM series ships as a certified ISOBUS VT display out of the box
What ISOBUS VT Actually Is
ISOBUS VT is part of ISO 11783 — in plain terms, the international standard that lets tractors and implements from different manufacturers talk to each other over a shared electrical and data protocol — specifically Part 6, the Virtual Terminal. A VT-compatible display doesn’t run one manufacturer’s software; it runs a universal interface that any compliant implement can plug into and control through. The implement itself sends its own screen layout and controls to the terminal — the terminal’s job is just to display and relay them.
In short: ISOBUS VT lets one certified terminal display and control any ISO 11783-6 compliant implement, replacing the need for a separate screen per machine brand.

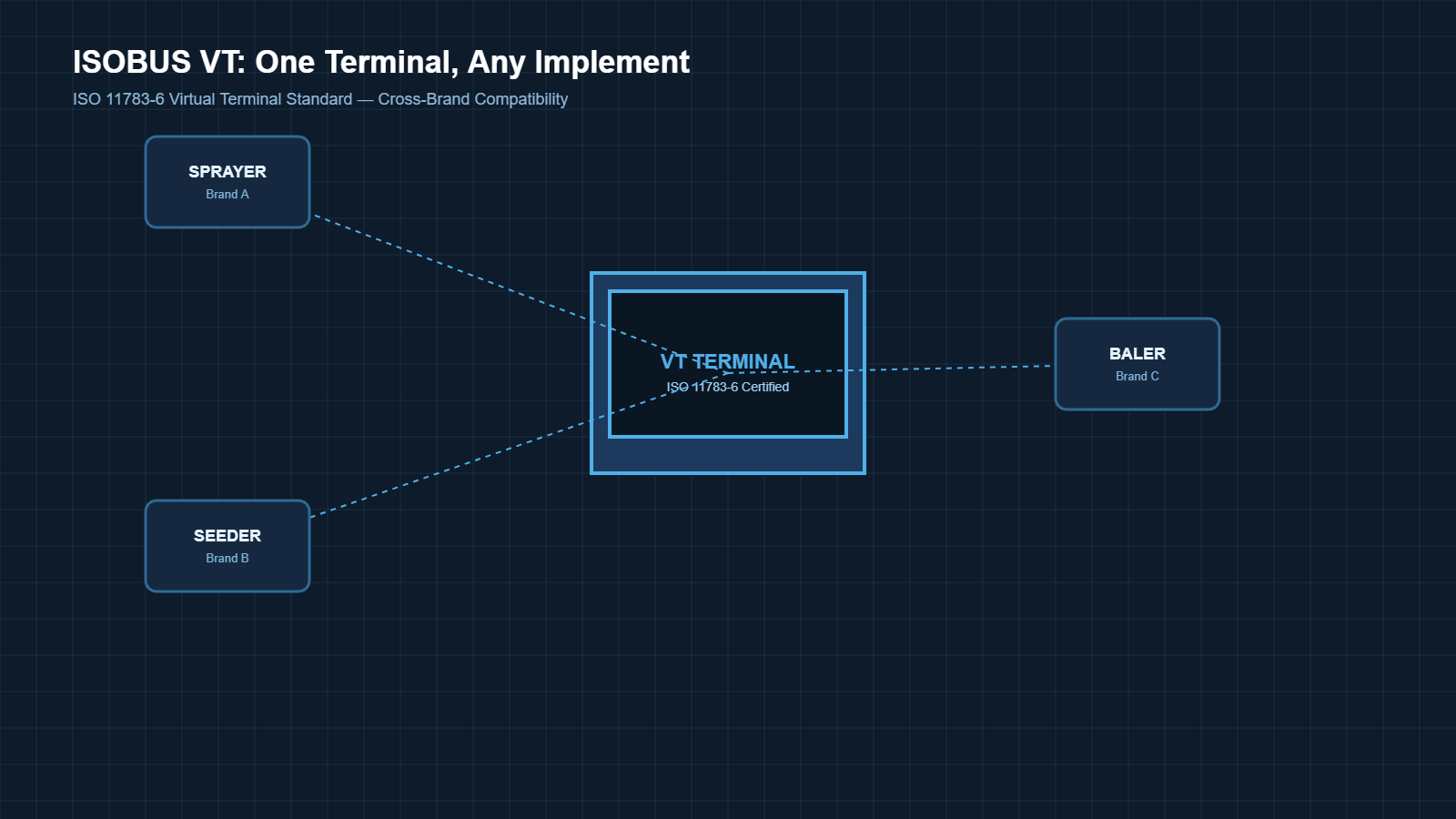

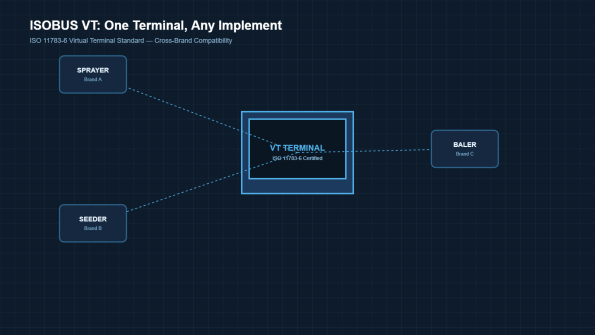

Picture a contractor running a sprayer from one manufacturer, a seeder from another, and a baler from a third — before ISOBUS VT, that’s three dedicated in-cab screens, three sets of controls to relearn, and three points of failure wired into one cab.
Why It Matters for Mixed Fleets
Does a fleet running only one implement brand still need ISOBUS VT? Not necessarily — the value compounds specifically once equipment comes from multiple manufacturers. For a mixed-brand operation, this changes cab economics directly:
- One terminal typically replaces three or four dedicated screens — the single biggest hardware cost reduction
- New implements from any ISOBUS-compliant brand work immediately, with no custom integration
- Operators learn one interface instead of relearning controls machine to machine
- Less clutter and wiring in the cab means fewer points of failure in the field
Total Cost Perspective
The upfront cost of a certified VT terminal is usually comparable to a single mid-tier dedicated display. The savings show up on the next implement purchase: instead of budgeting for another proprietary screen, a mixed-brand operation reuses the existing VT terminal. Over a 3-4 year equipment cycle, avoiding 2-3 dedicated screen purchases is typically where the payback shows up — not in the initial terminal price itself.
Decision Path
- Single-brand fleet with no plans to diversify → a dedicated display may still be sufficient
- Mixed-brand fleet with 2+ implement manufacturers → ISOBUS VT consolidation typically pays back within one season of avoided screen purchases
- Growing fleet adding new implement types yearly → prioritize VT certification now to avoid re-purchasing displays later
What to Look For
Not every “smart” display supports ISOBUS VT out of the box. When evaluating a terminal, confirm two things: it’s certified against ISO 11783-6, and how many implements it can address simultaneously — some terminals only support one active VT connection at a time, which matters for combination implements running multiple systems at once.
See the full rugged vehicle tablet hardware lineup
CF-Device’s ISOBUS VT Implementation
CF-Device’s ISO 11783 compliant Virtual Terminal application is called CF ISOBUS VT. It runs on the VCM series of vehicle-mount terminals and turns the terminal into a Universal Terminal, loading and controlling implement interfaces from any ISOBUS-compliant manufacturer on a single screen. Where prescription maps, section control and as-applied logging are needed, CF ISOBUS TC — the Task Controller application — runs alongside it; the two are supplied together as the CF ISOBUS VT/TC Suite for machinery builders.
Development against the platform uses the CF-Device Communication SDK, supplied in both C++ and Java versions for the dual Android 11.0 and embedded Linux 5.10 platform. It handles CAN (classic and CAN FD), SocketCAN, Modbus RTU and the serial interfaces, abstracting the MCU-to-SoC transport so application code does not change between hardware models. Library filenames, package names and class names in the SDK retain their original code-level identifiers and should be used exactly as they appear in the documentation.
When a Standard Display Is Still Fine
If every implement in the fleet comes from a single manufacturer and there’s no near-term plan to diversify, a dedicated manufacturer display can still do the job. ISOBUS VT’s advantage is specifically brand interoperability, not raw display quality — a single-brand operation may not see the payback described above.
Common Questions
Does ISOBUS VT work with implements from any brand?
Yes, as long as the implement itself is certified to ISO 11783-6. The terminal doesn’t need brand-specific software — it just renders what the implement sends.
Can one terminal run multiple ISOBUS implements at once?
It depends on the terminal’s simultaneous-connection capacity — confirm this spec before buying if the fleet runs combination implements.
Is ISOBUS VT the same as ISOBUS in general?
No — ISOBUS VT (Part 6) is specifically the display/control layer. Full ISOBUS (ISO 11783) covers the entire tractor-implement communication standard across 14 parts (per ISO 11783 documentation).
Do compatibility and connection limits vary by terminal model?
Compatibility and simultaneous-connection specs vary by terminal model and firmware version — always confirm against the specific implement and terminal combination before deployment.
CFDevice’s rugged vehicle terminals are built as full ISOBUS VT displays from the ground up — one screen, ready for whatever’s hooked up next. See the CFDevice rugged vehicle tablet hardware buyer’s guide. Learn how MDM, DMS, 360° AVM and ISOBUS VT work together on one tablet. For how implement control fits within the wider fleet software stack — configuration, OTA updates, and device health across every terminal — see our mobile device management solutions hub.
Interested in specs or a quote? Contact our team to discuss ISOBUS VT terminals for your fleet.
